SPECIFICATIONS

Hign-concerned Chemical: None

Origin: Mainland China

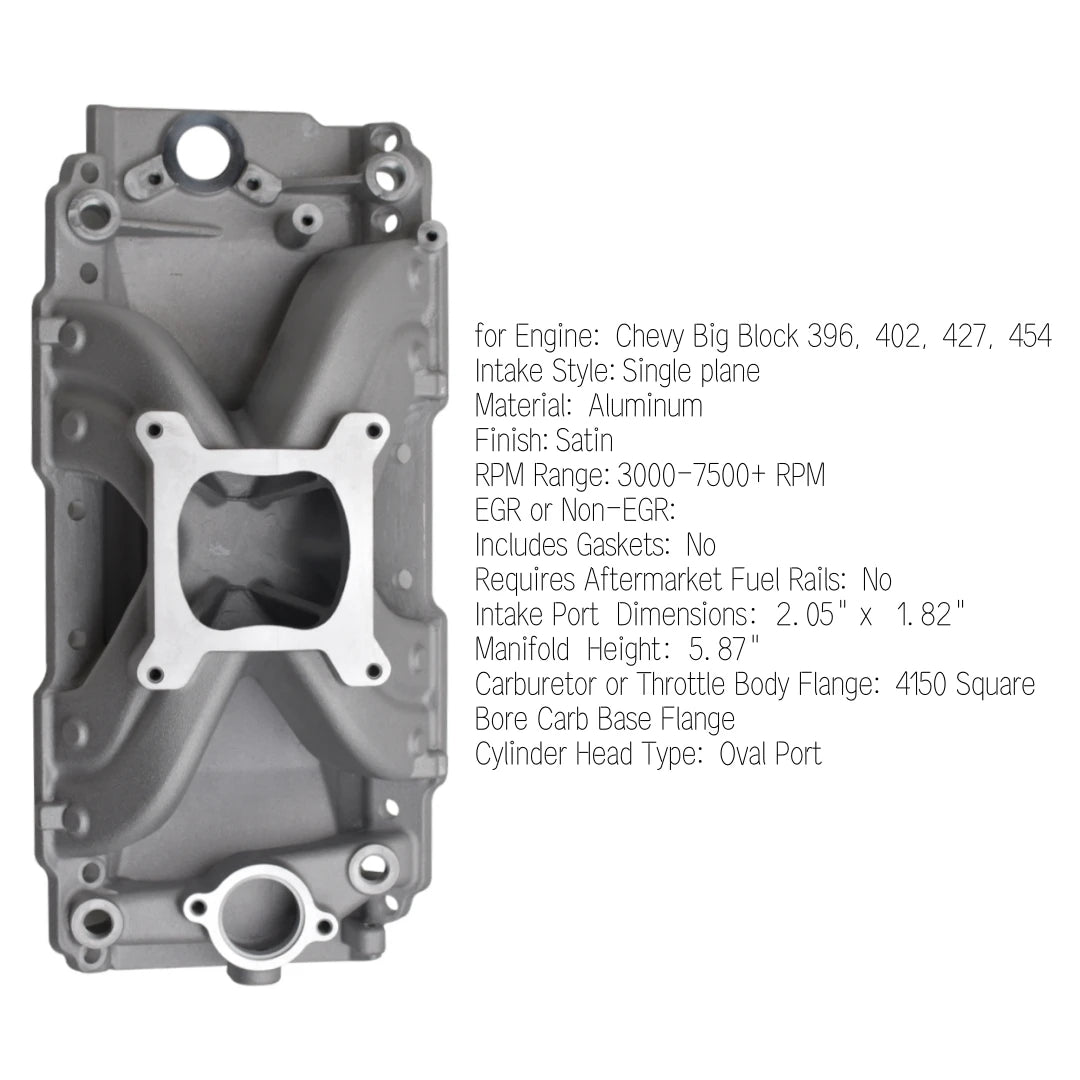

Specifications:

Engine: 396, 402, 427, 454

Intake Style:Single plane

RPM Range:3000-7500+ RPM

EGR or Non-EGR:

Material: Aluminum

Finish:Satin

Includes Gaskets: No

Requires Aftermarket Fuel Rails: No

Intake Port  Dimensions：2.05" x   1.82"

Manifold  Height：5.87"

Carburetor or Throttle Body Flange: 4150 Square Bore Carb Base Flange

Cylinder Head Type: Oval Port

Engine Make/Size: Chevy Big Block (396-454)

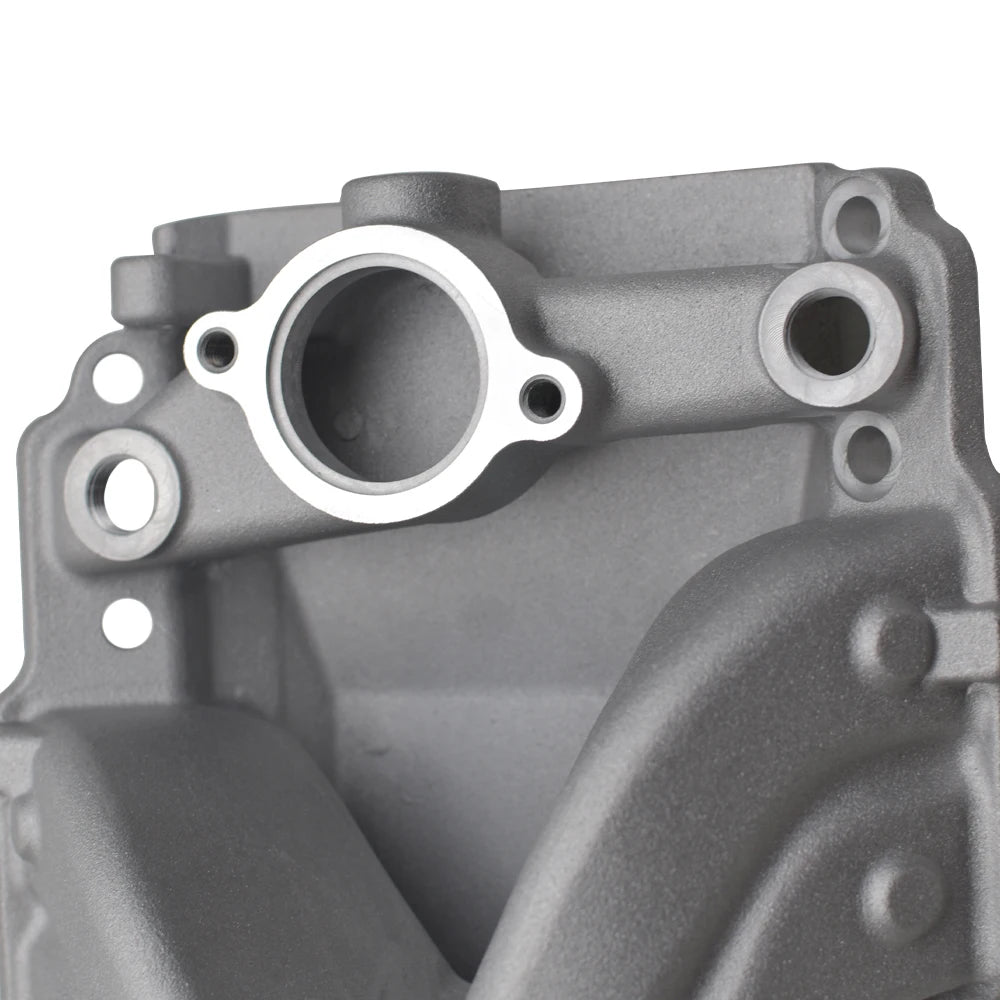

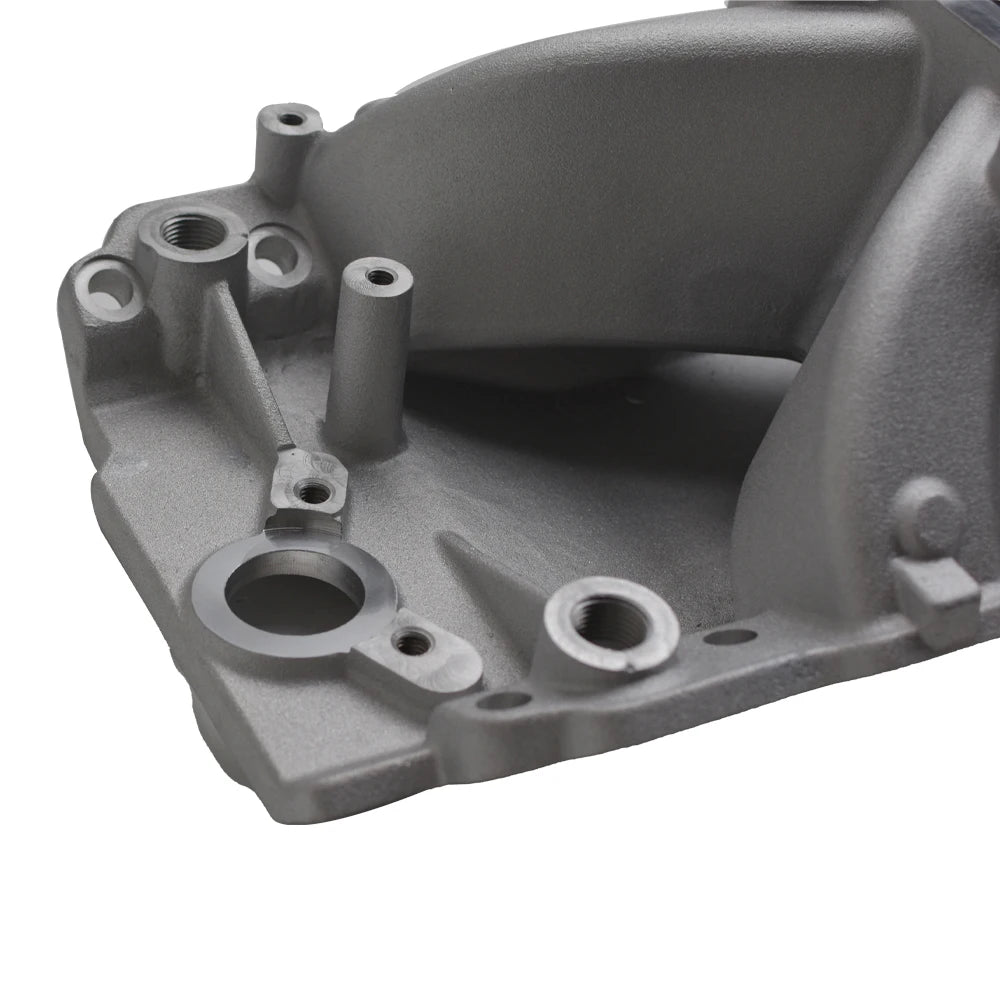

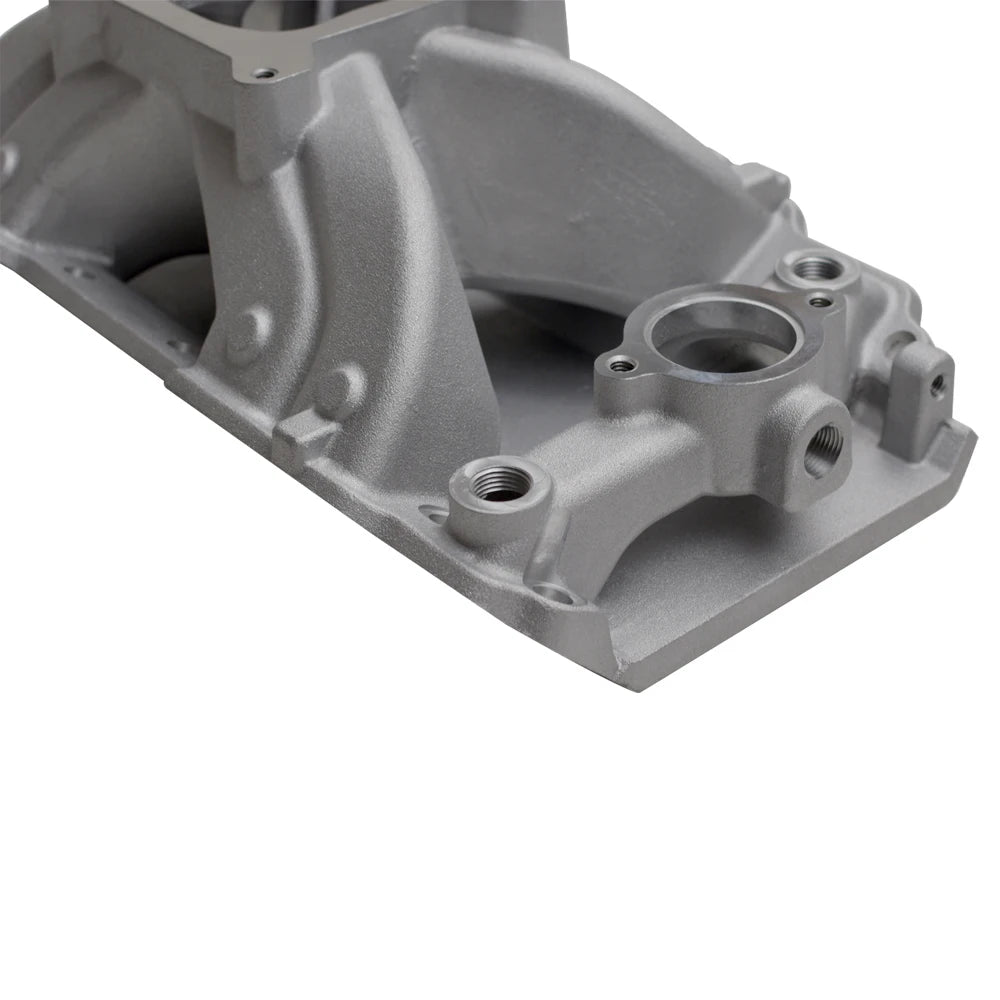

Four corner water ports, dual distributor hold-downs and nitrous bosses

The air gap design allows air to flow under the plenum to prevent heat transfer from the engine, resulting in more horsepower

Best on engines with displacement in the 396 to 454 range producing from 600 to 700 horsepower

Package including:

1 X Aluminum Intake Manifold (No adapters include)

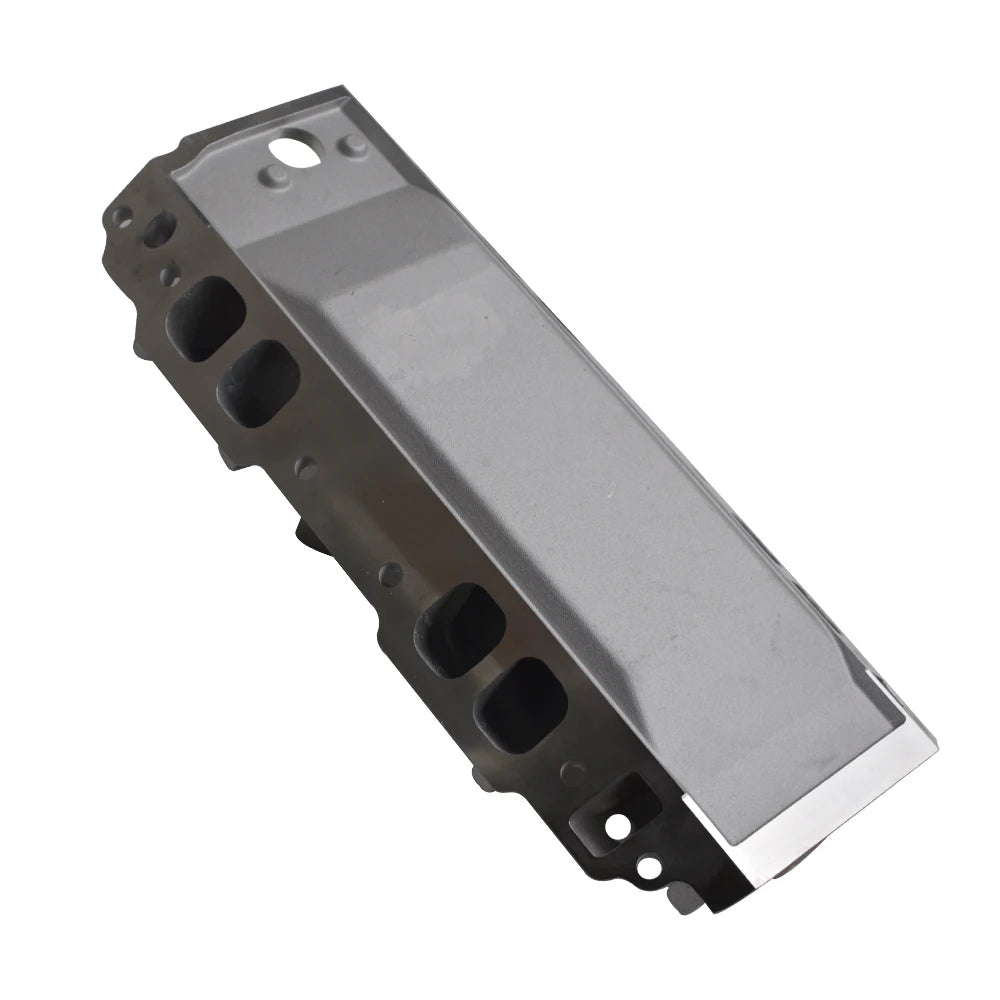

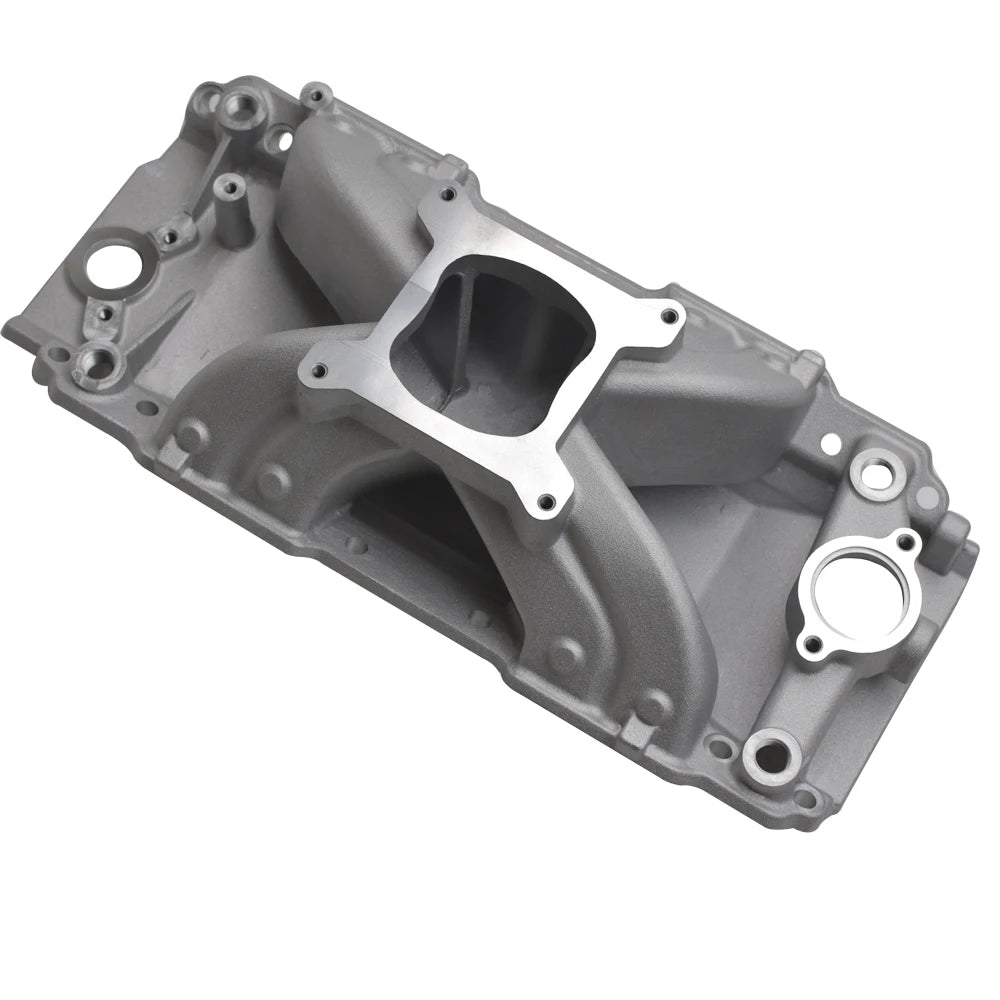

As Shown in the Picture above.

Fitment:

For Big Block Chevy V8 396-454

If you want to know whether the model is suitable, you can consult us
