Lightning Auto LLC.

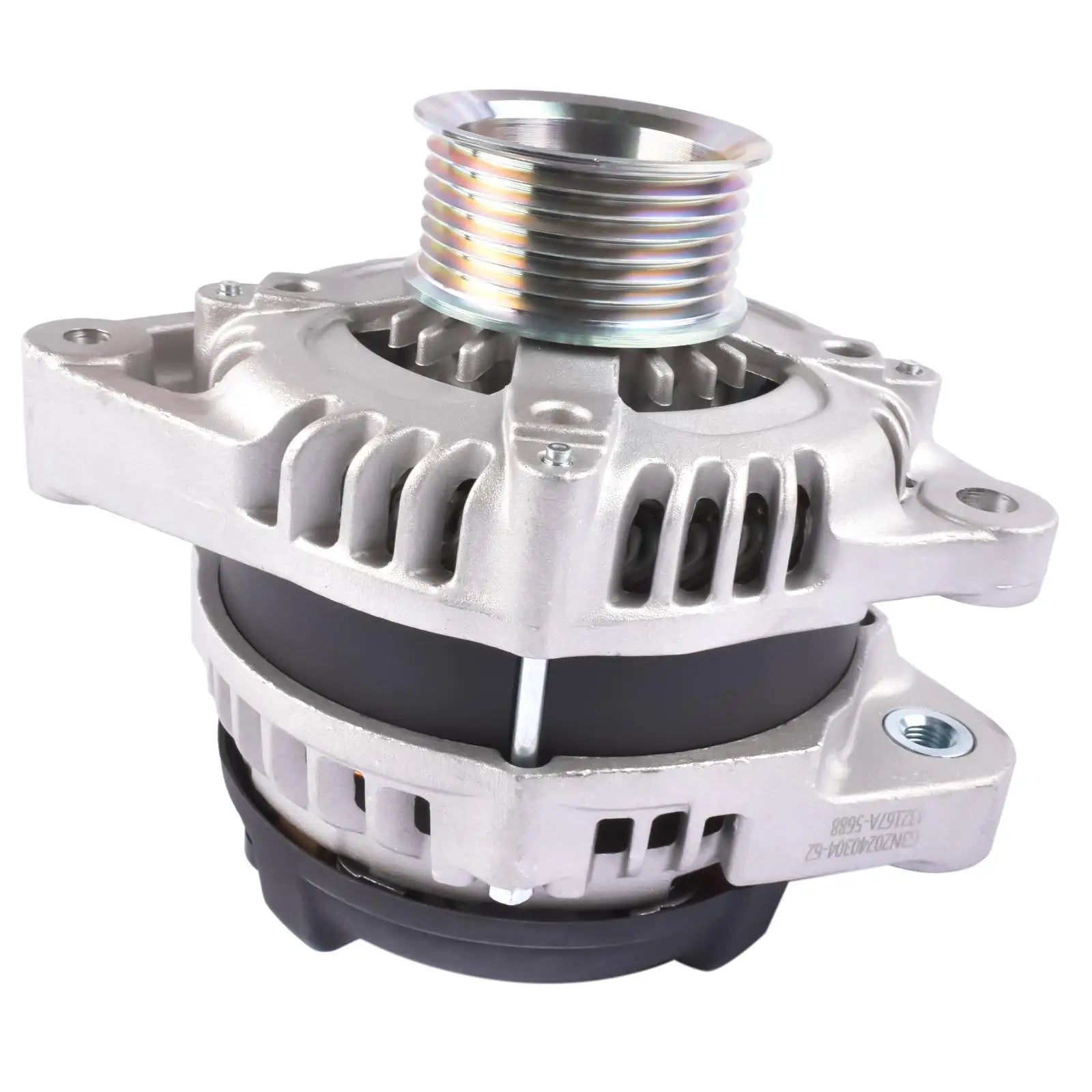

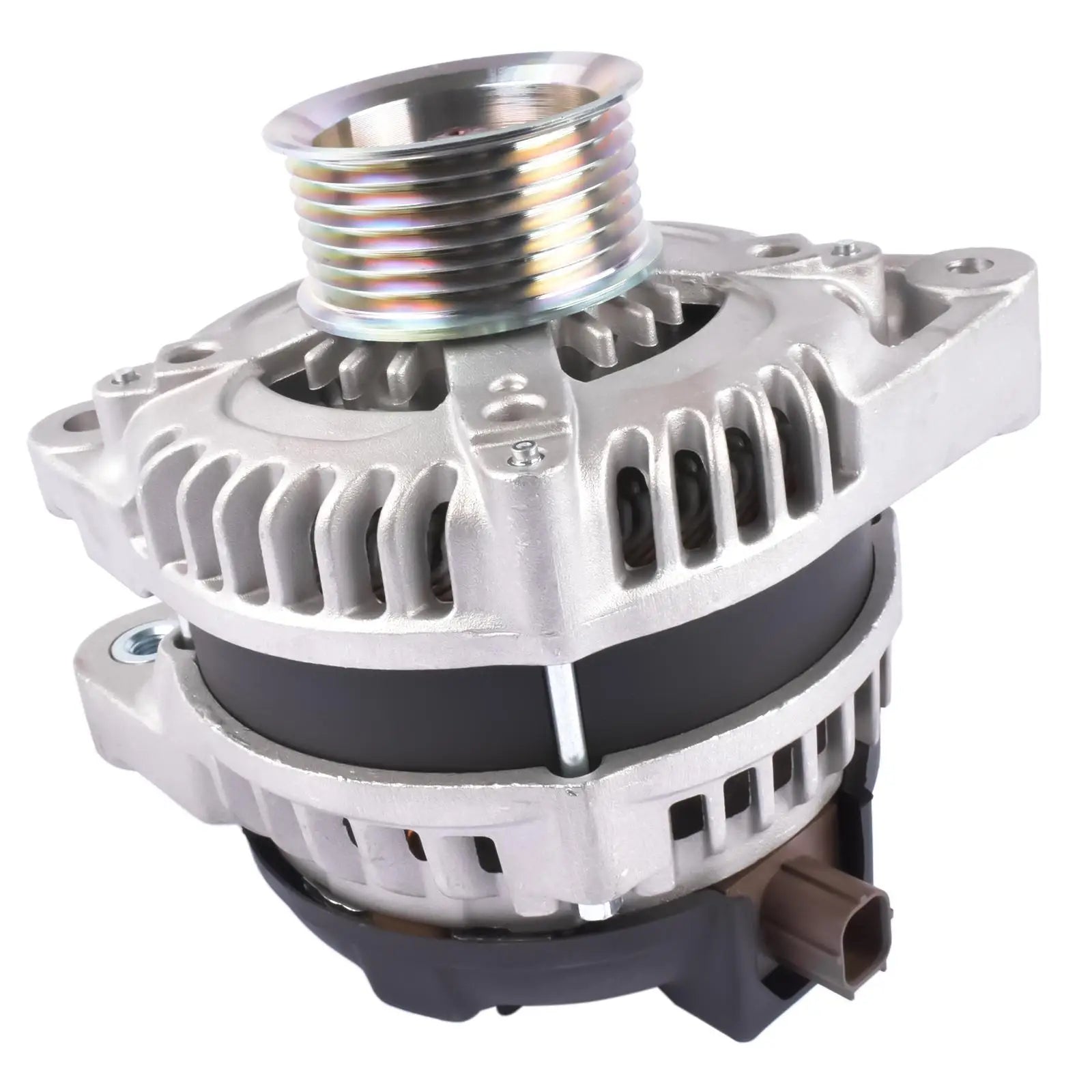

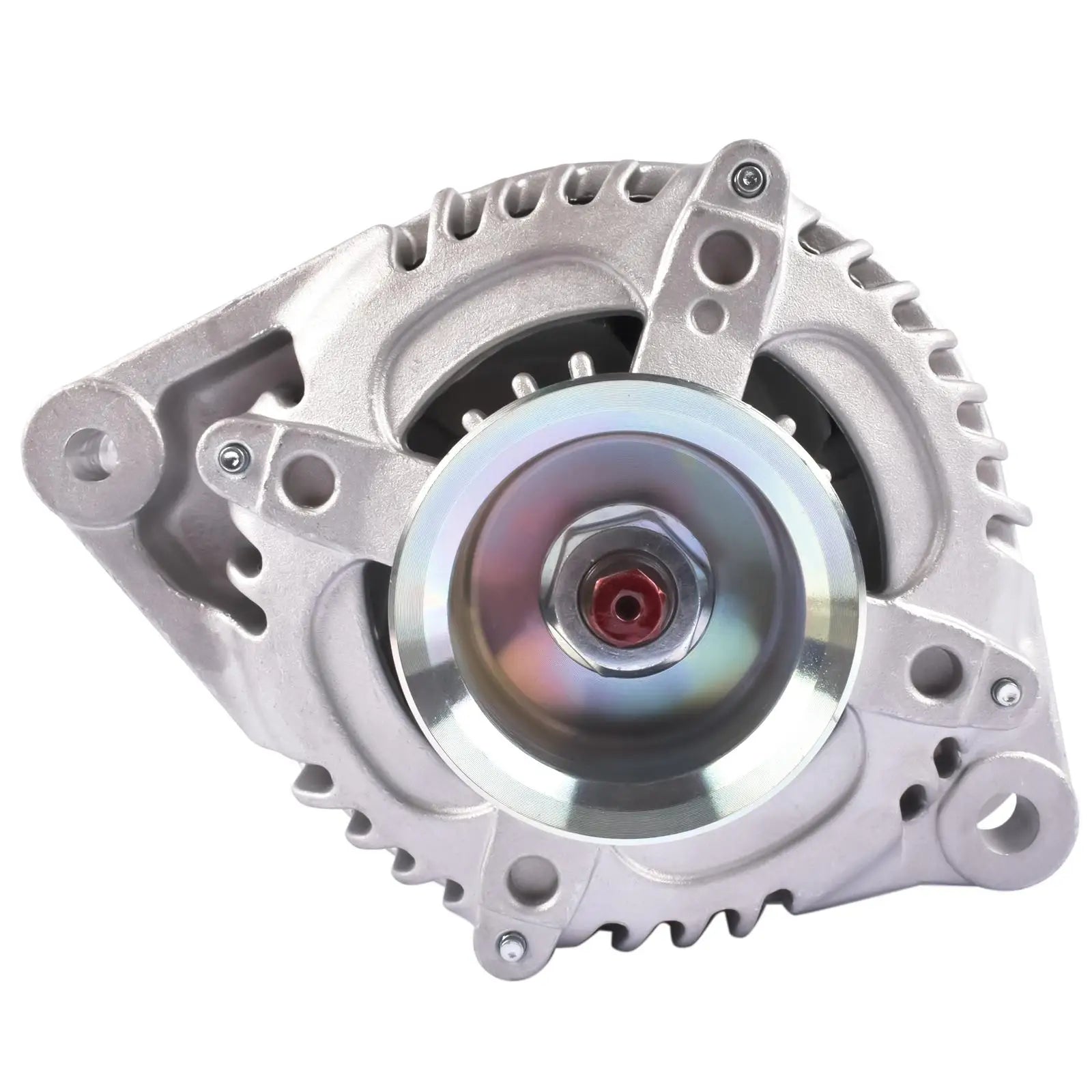

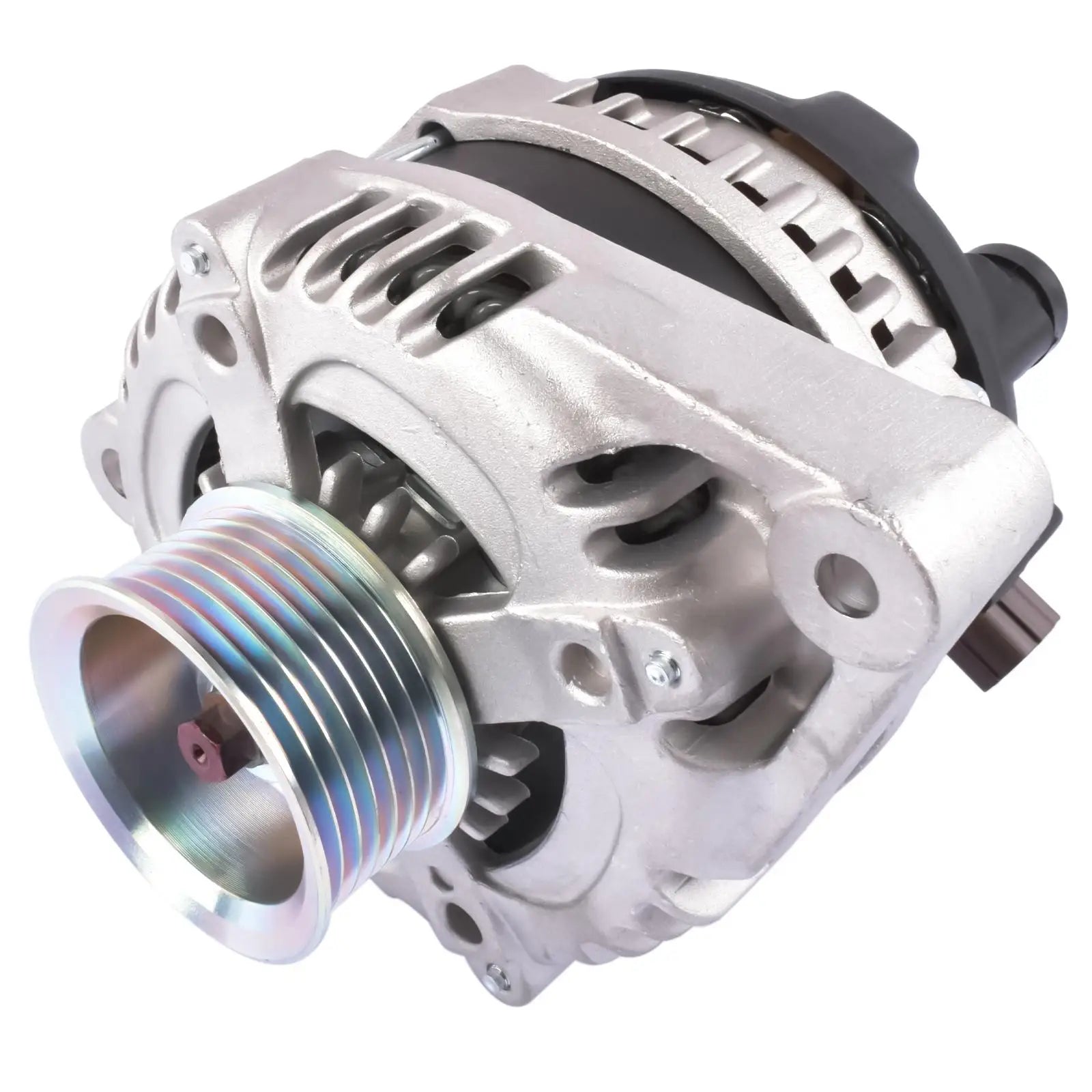

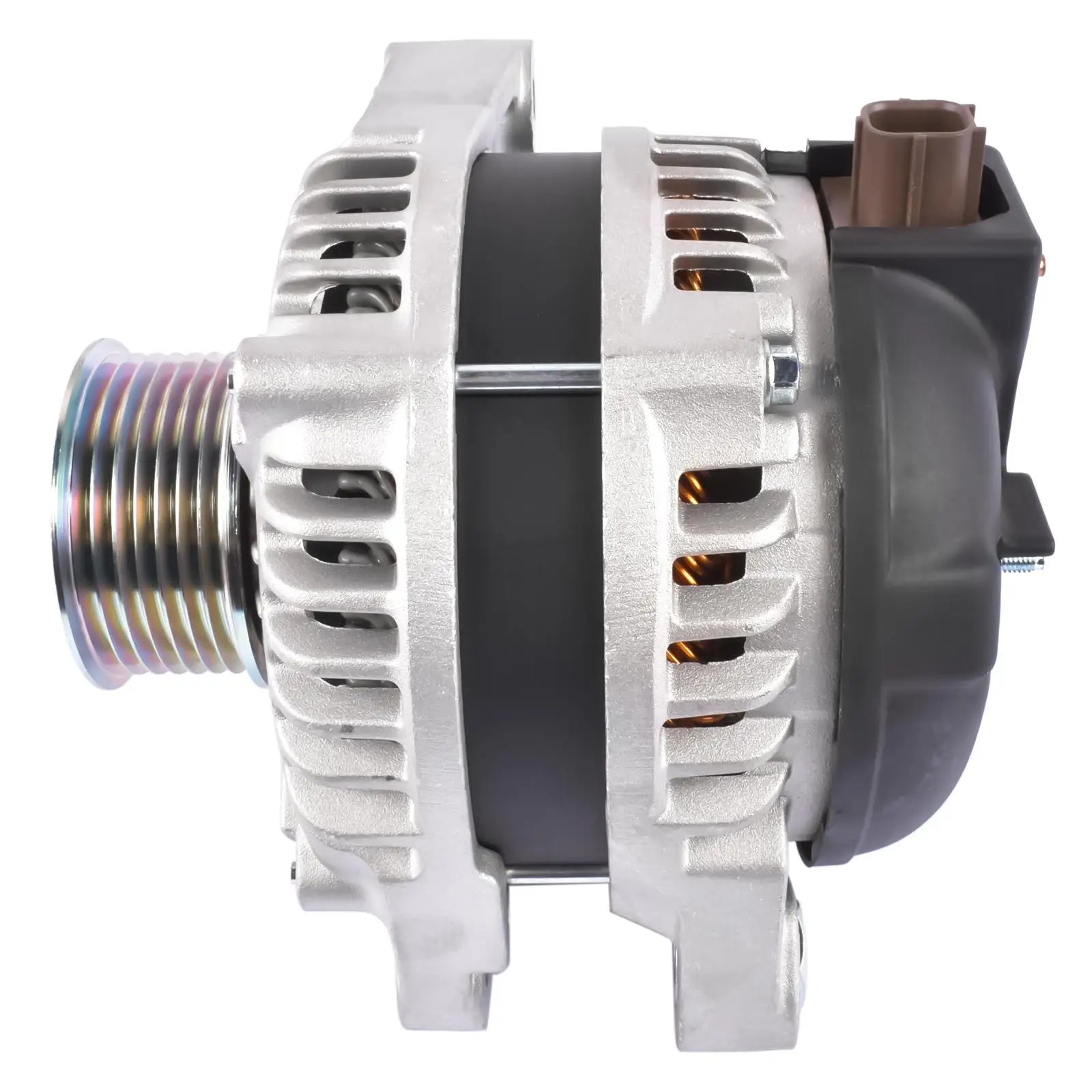

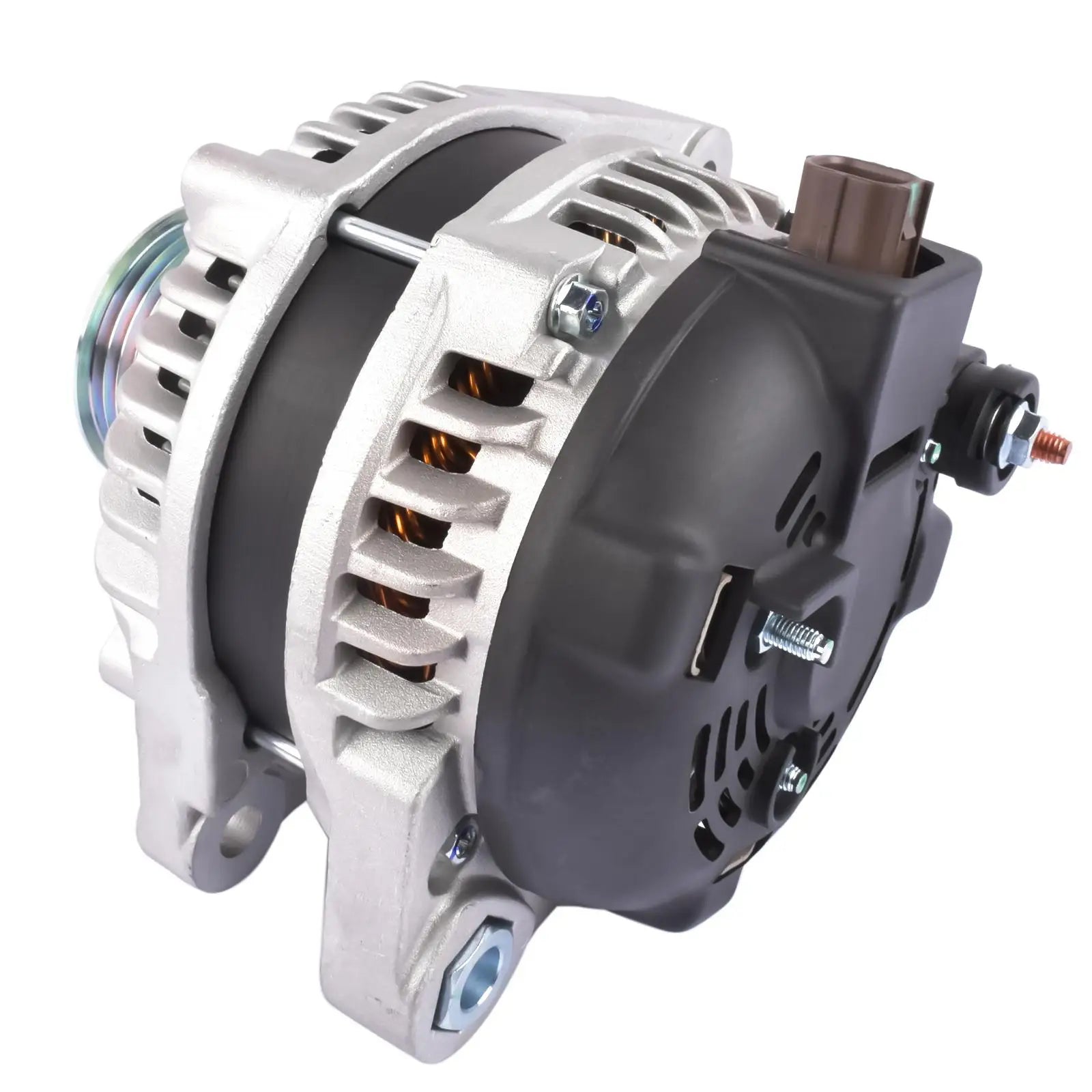

AP03 Alternator for Honda Accord 2008 2009 2010 2011 2012 Acura TSX 2009-2014 130Amp
AP03 Alternator for Honda Accord 2008 2009 2010 2011 2012 Acura TSX 2009-2014 130Amp
Regular price
$115.88 USD
Regular price
$0.00 USD
Sale price
$115.88 USD
Unit price
/
per
Tax included.
Couldn't load pickup availability
SPECIFICATIONS
Hign-concerned Chemical: none
Origin: AE(Origin)
Item Length: 24CM
Special Features: Durable, Easy Installation
Item Width: 19CM
Item Height: 16.5CM
Interchange Part Number: for ACURA TSX L4_2.4L 2009-2014, HONDA ACCORD L4_2.4L 2008-2012
Item Weight: 5.5KG
Manufacturer Part Number: 31100-R40-A01, 31100R40A01, 104210-5890, 1042105890
OEM NO.: 31100-R40-A01RM, 31100R40A01RM, 06311-R50-505RM, 06311R50505RM
Other Part Number: 13-9444, 139444, CSF89, 11390
Placement on Vehicle: Front
Color: Silver
Product Type:
Alternator
OEM Part Number:
31100-R40-A01RM, 31100R40A01RM
06311-R50-505RM, 06311R50505RM
31100-R40-A01, 31100R40A01
104210-5890, 1042105890
13-9444, 139444
CSF89
11390
06311-R50-505RM, 06311R50505RM
31100-R40-A01, 31100R40A01
104210-5890, 1042105890
13-9444, 139444
CSF89
11390
Specifications:
Voltage: 12
Rotation: CW
Amperage: 130
Pulley Class: 7-Groove Pulley
Regulator: IR
Fan Type: IF
Rotation: CW
Amperage: 130
Pulley Class: 7-Groove Pulley
Regulator: IR
Fan Type: IF
Applications:
Replacement for ACURA TSX L4_2.4L 2354cc 2009-2014
Replacement for ACURA TSX L4_2.4L 2354cc 144cid 2011-2013
Replacement for HONDA ACCORD L4_2.4L 2354cc 2008-2012
Replacement for HONDA ACCORD L4_2.4L 2354cc 144cid 2008-2012
Replacement for ACURA TSX L4_2.4L 2354cc 144cid 2011-2013
Replacement for HONDA ACCORD L4_2.4L 2354cc 2008-2012
Replacement for HONDA ACCORD L4_2.4L 2354cc 144cid 2008-2012
How to Install:
Step 1 : Tum off the ignition switch and all electrical equipment, locate
the battery and disconnect the battery cable. Remove the intake hose, mass air flow sensor and air filter
Step 2 : A serpentine belt tool is required to remove the belt from the alternator pulley. Be careful in this step, otherwise the belt may be damaged
Step 3 : Prepare the sleeve and ratchet wheel, and remove the bolts, about 2-4. At the same time, mark the position to facilitate the installation of the new alternator
Step 4 : Find the correct position, install the new alternator, fix the bolts, install the belt, air hose, mass air flow sensor, air filter and battery negative cable
the battery and disconnect the battery cable. Remove the intake hose, mass air flow sensor and air filter
Step 2 : A serpentine belt tool is required to remove the belt from the alternator pulley. Be careful in this step, otherwise the belt may be damaged
Step 3 : Prepare the sleeve and ratchet wheel, and remove the bolts, about 2-4. At the same time, mark the position to facilitate the installation of the new alternator
Step 4 : Find the correct position, install the new alternator, fix the bolts, install the belt, air hose, mass air flow sensor, air filter and battery negative cable
Note:Professional Installation Is Highly Recommended
