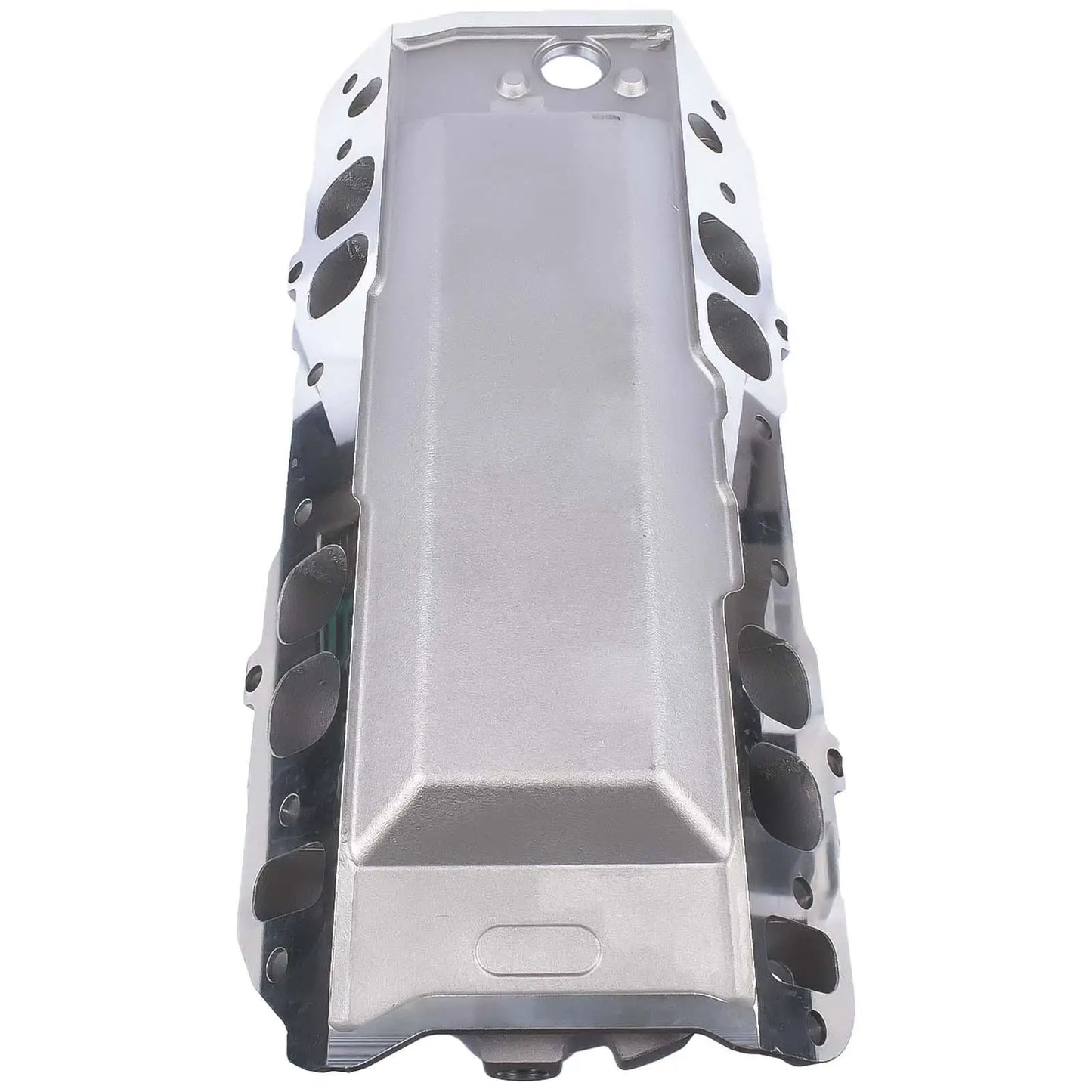

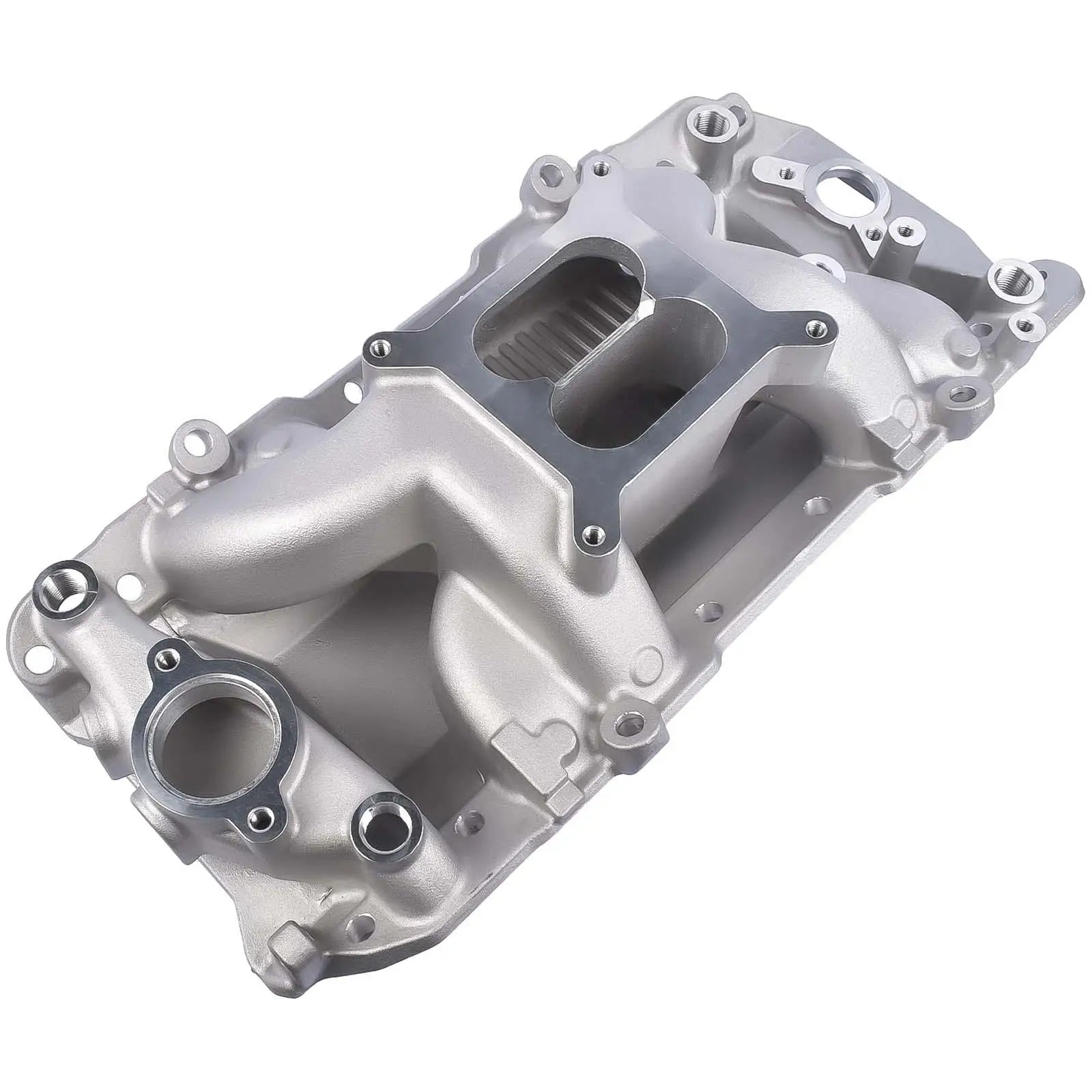

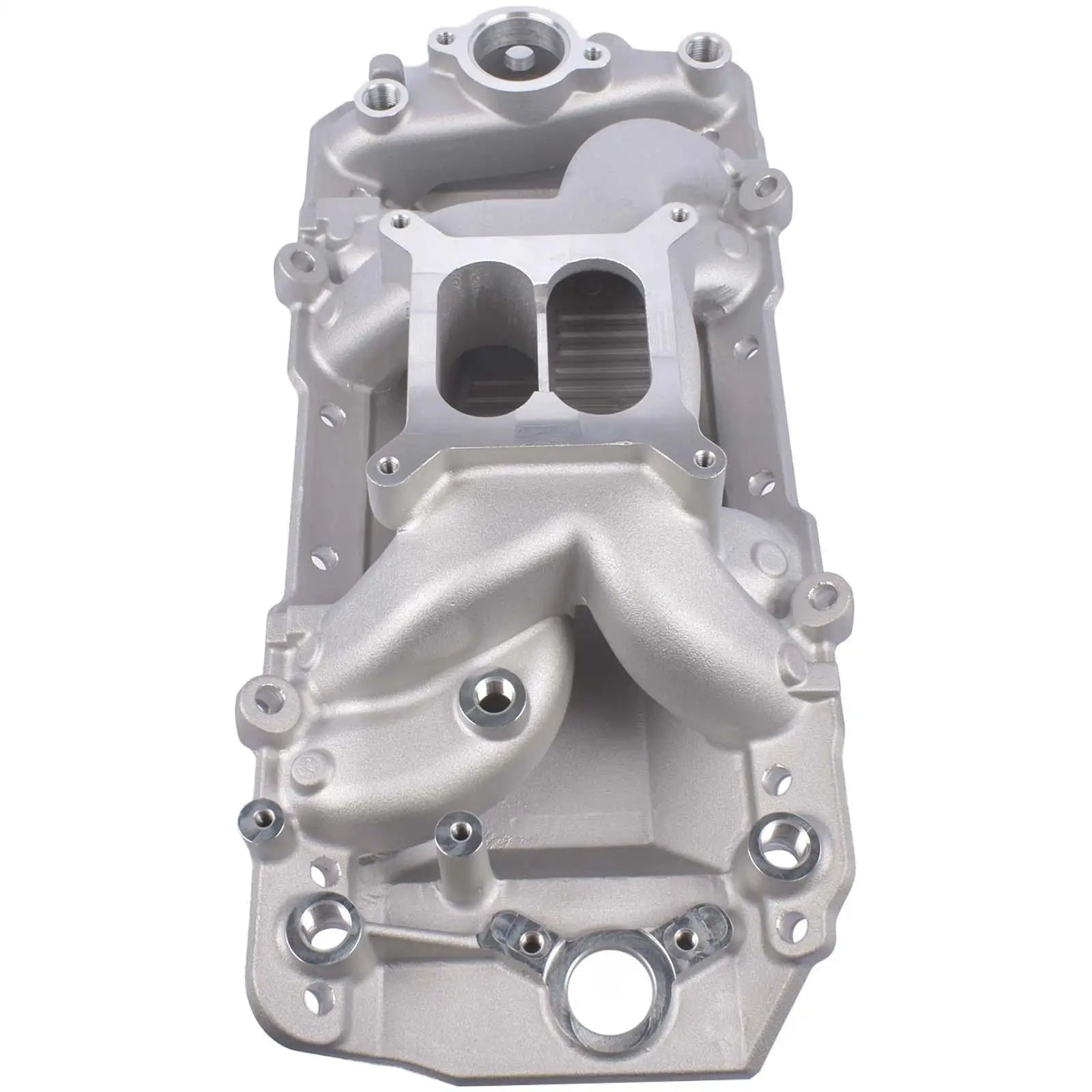

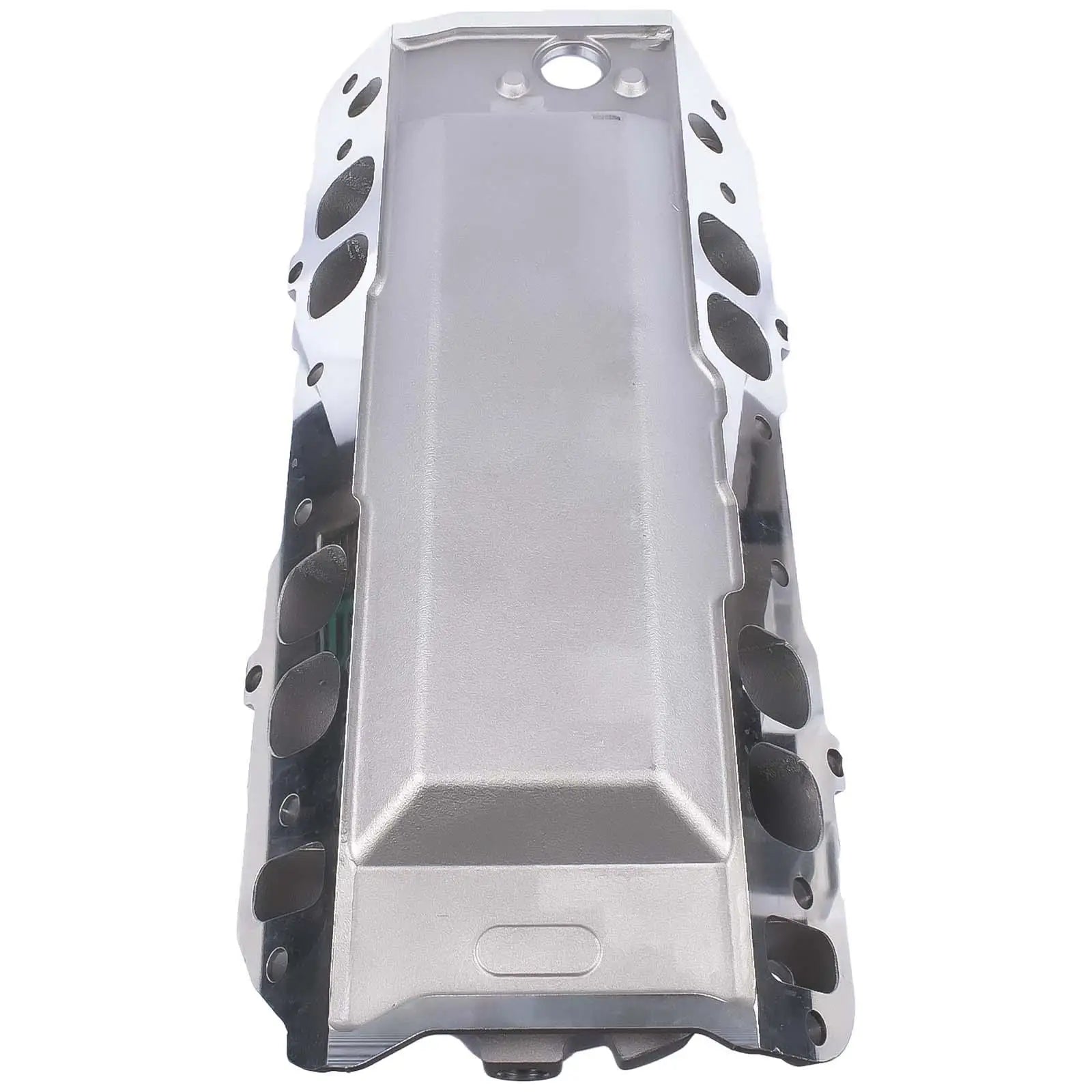

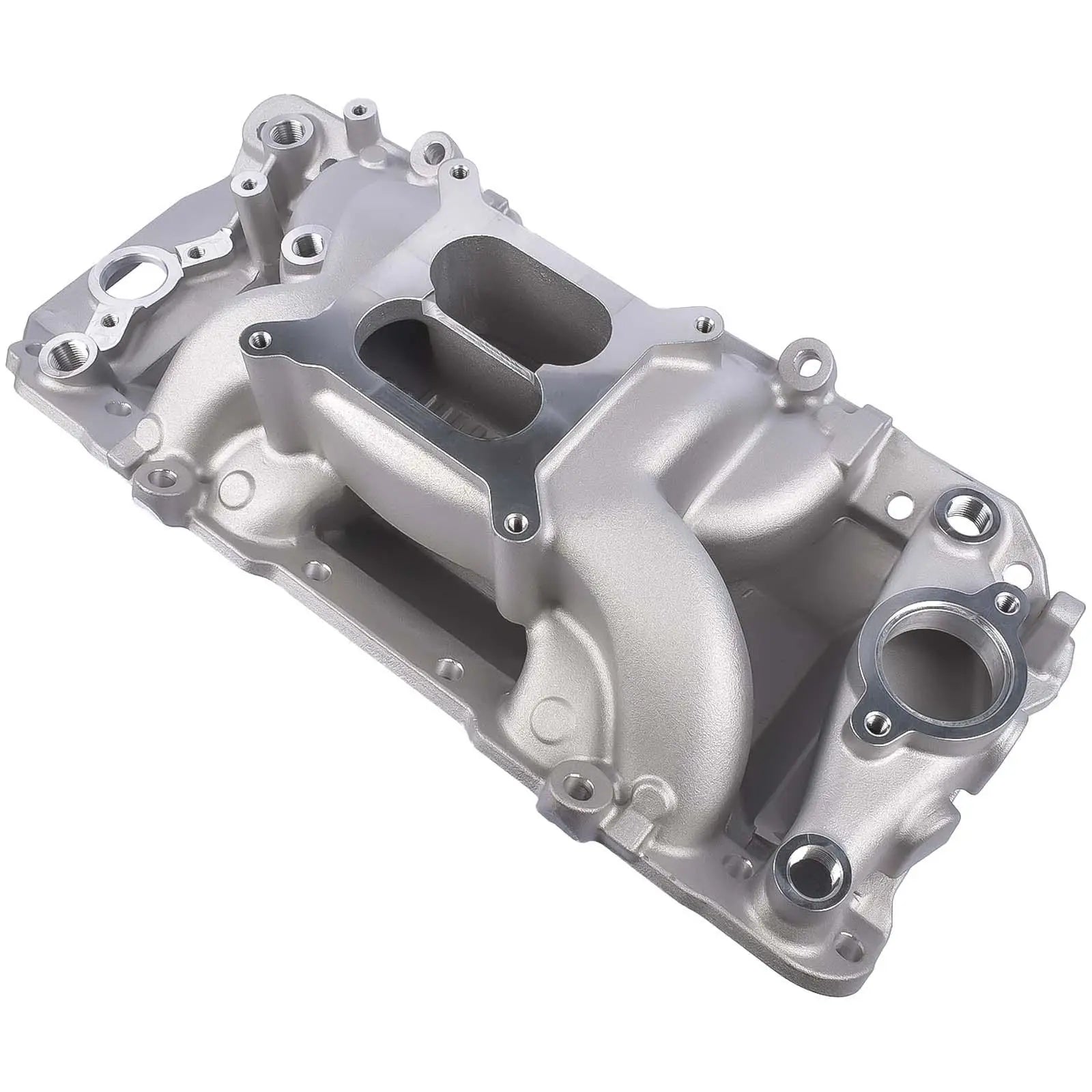

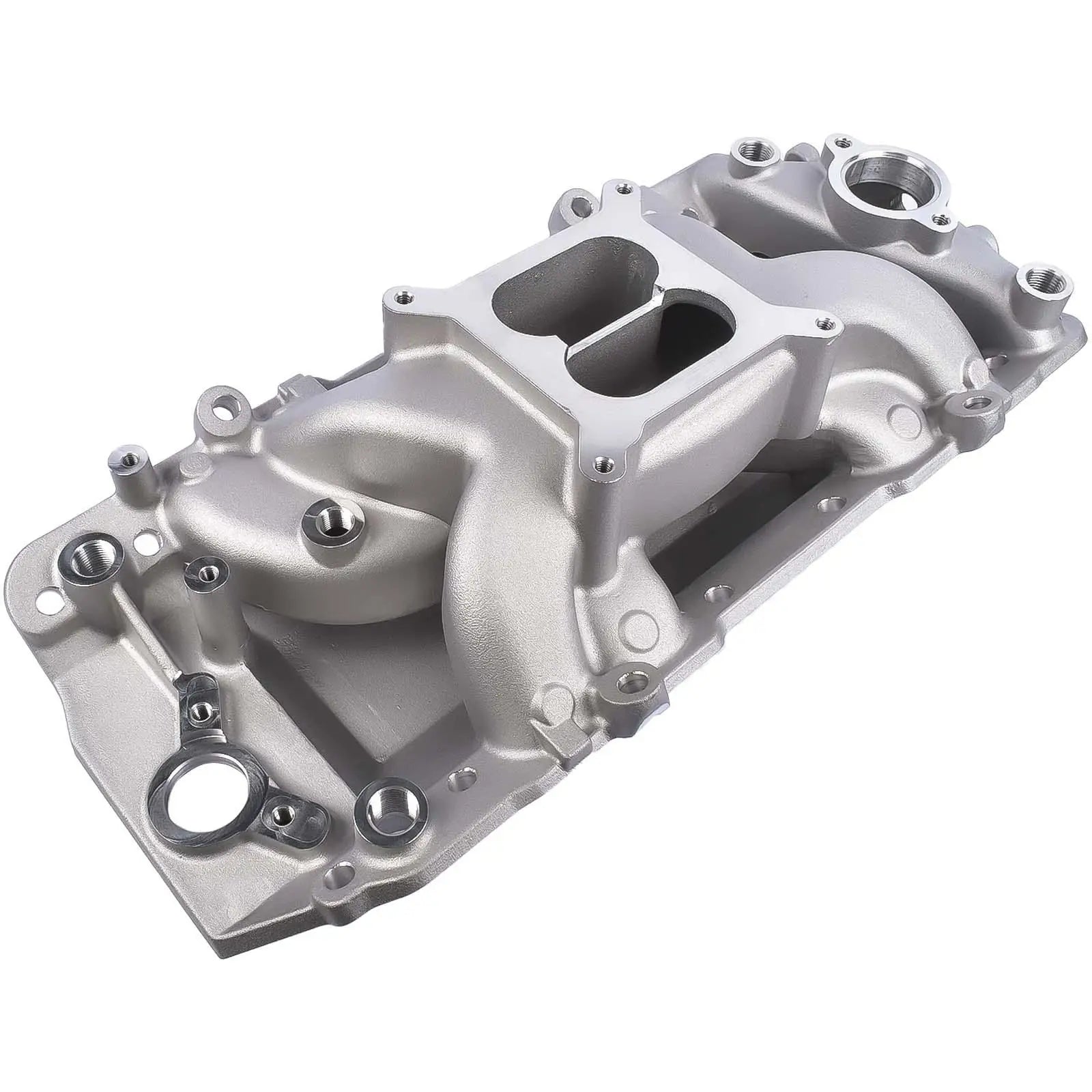

AP02 Big Block Dual Plane Air Gap Intake Manifold for Chevrolet V8 396 454 402 427
AP02 Big Block Dual Plane Air Gap Intake Manifold for Chevrolet V8 396 454 402 427
Regular price
$175.99 USD
Regular price
$213.99 USD
Sale price
$175.99 USD
Unit price
/
per
Tax included.
Couldn't load pickup availability
SPECIFICATIONS
High-concerned Chemical: None
Interchange Part Number: For V8, 6.5L/396, 6.6L/402, 7.0L/427, 7.4L/454
Manufacturer Part Number: Oval Port
OEM NO.: 53026
Origin: Mainland China
Other Part Number: 53026
Special Features: 4-barrel square bore
OEM Part Number
1-147-019, PCE147.1034, 53026
Fit For the Following Models
Chevrolet 1965-1970 ▪Chevy Big Block, V8, 6.5L/396
Chevrolet 1970-1972 ▪Chevy Big Block, V8, 6.6L/402
Chevrolet 1966-1969 ▪Chevy Big Block, V8, 7.0L/427
Chevrolet 1970-2000 ▪Chevy Big Block, V8, 7.4L/454
Chevrolet 1970-1972 ▪Chevy Big Block, V8, 6.6L/402
Chevrolet 1966-1969 ▪Chevy Big Block, V8, 7.0L/427
Chevrolet 1970-2000 ▪Chevy Big Block, V8, 7.4L/454
Product Specifications:
Condition: New
Intake Material: Aluminum
Intake Style: Dual Plane
Carburetor Mounting: 4-barrel spuare bore
Cylinder Head Style: Oval port
Condition: New
Intake Material: Aluminum
Intake Style: Dual Plane
Carburetor Mounting: 4-barrel spuare bore
Cylinder Head Style: Oval port
Manifold Features:
-
Satin finish
-
Oval port intake
-
180° dual plane high rise design for outstanding power from 1500 to 6500 RPM
-
Cast-in bosses on intake runners can be drilled & tapped for use w/ nitrous injectors
-
Square bore carb bolt pattern for the 4150/4160 style carburetor
-
Ideal port position - allows custom porting for maximum power
-
Dual distributor hold-down provisions for extra protection against distributor rotation
-
Four corner water outlets
180° high
rise design, big power over a wide RPM range. For use with square bore
style carbs. No provision for exhaust heated choke or exhaust crossover.
Provides standard bosses and tapped holes for street accessories such
as A/C and alternator brackets. Not EGR equipped.
